Samsung Main Board BN97-14701A BN41-02836A

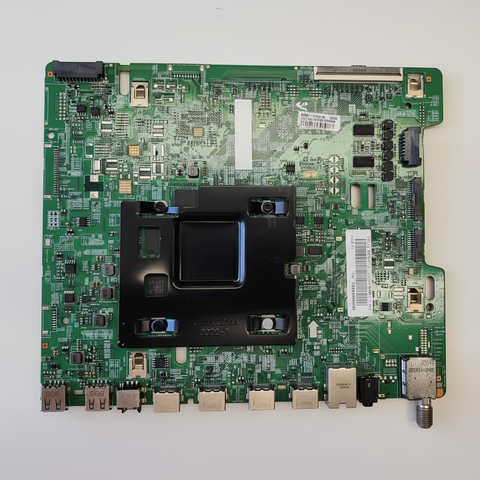

Samsung TV Main Board BN97-14701A

OEM replacement main board for Samsung 4K UHD Smart TV. This is the primary logic/motherboard that controls all TV functions including video processing, audio, HDMI inputs, USB ports, and Tizen smart TV features.

Part Details

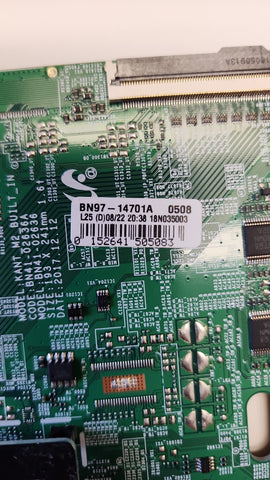

• Part Number: BN97-14701A
• PCB Model: BN41-02836A
• PCB Code: BN41-02636A
• PCB Name: KANT M2_BUILT_IN
• Code: 0508
• Reference: L25 (D)08/22 20:38 18N035003
• PCB Size: 193 x 241mm
• PCB Date: 2017.12.12
• T-Con Connector: BN05-00913A
• Condition: Used / Pulled

Connectors & Ports on Board

• HDMI ports (x3)
• USB ports (x2)
• LAN/Ethernet port
• RF/Coaxial antenna input
• LVDS/panel connector
• Wi-Fi module connector

Compatibility

Please verify your board number before purchasing. Match the part number on your original board to ensure compatibility.
